In modern industrial and commercial setups, achieving energy efficiency and precise control over equipment is crucial. Two technologies that play a key role in optimizing performance are Variable Frequency Drives (VFDs) and Pulse Width Modulation (PWM) fans. By integrating these technologies, businesses can dynamically adjust fan speeds, reduce energy consumption, and extend equipment lifespan. In this article, we will explore how fan VFDs and PWM fans work together to optimize real-time performance and why their implementation is essential for efficiency-focused operations.
What is a Variable Frequency Drive (VFD)?
Definition and Function
A Variable Frequency Drive (VFD) is an electronic device that adjusts the speed and torque of an electric motor by varying the frequency and voltage supplied. Instead of running a motor at full speed constantly, a VFD allows it to operate at different speeds based on real-time demand. This is particularly beneficial for motor-driven systems such as fans, pumps, and HVAC units, where energy consumption can be significantly reduced through precise speed control.

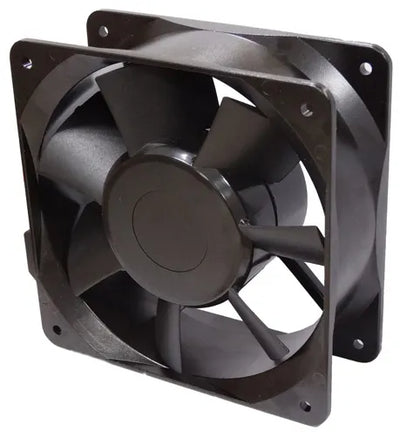

List of AC Axial Fans
Sofasco provides high-quality 12V, 24V, and 48V industrial axial fans at competitive prices.
Benefits of Using VFDs
- Energy Efficiency: Traditional motors often run at full speed regardless of load. VFDs adjust motor speed to match demand, reducing unnecessary energy consumption.
- Reduced Wear and Tear: Smooth acceleration and deceleration prevent mechanical stress, extending motor and system life.
- Improved Motor Control: VFDs enable accurate speed control, ensuring consistent performance in industrial processes.
Implementing VFDs not only improves operational efficiency but also contributes to sustainability goals by lowering electricity usage and reducing carbon footprint.
Understanding PWM Fans
What is a PWM Fan?
A PWM fan is a type of fan that uses Pulse Width Modulation to regulate its speed. PWM works by switching the electrical signal supplied to the fan on and off at high frequency. The proportion of “on” time versus “off” time determines the fan’s speed. This allows the fan to operate at various speeds, matching the cooling requirement precisely.
Advantages of PWM Fans
- Precise Speed Control: PWM fans can adjust their speed in small increments, providing exact airflow as needed.
- Lower Noise Levels: Since they don’t operate at full speed unnecessarily, PWM fans generate less noise.
- Energy Savings: Operating only at the required speed reduces power consumption, leading to lower energy costs.
PWM fans are especially useful in applications where cooling requirements fluctuate, such as in server rooms, manufacturing processes, or sensitive electronic systems.

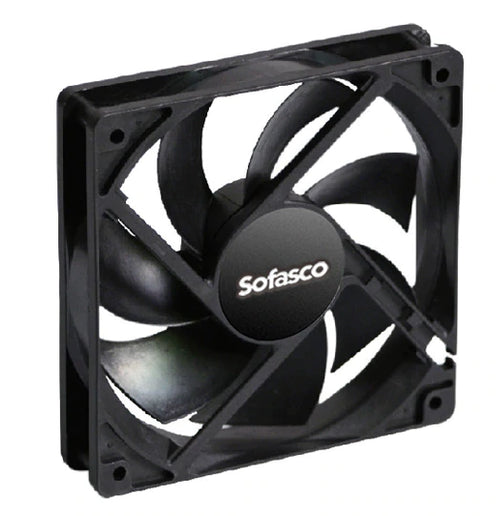

List of DC Axial Fans
We provide cost-effective DC Axial fans with sizes ranging from 25mm to 172mm and voltage options from 12V to 48V,
How VFDs and PWM Fans Work Together
Synchronization for Optimal Performance
When a PWM fan is controlled via a VFD, the two technologies complement each other for maximum efficiency. The VFD adjusts the motor’s speed, while the PWM fan responds with precise airflow control. This synchronization ensures that fans operate exactly as required, avoiding overcooling or undercooling. The result is improved energy efficiency, reduced mechanical wear, and consistent system performance.
Real-Time Monitoring and Adjustments
Modern VFDs are often equipped with sensors and advanced monitoring tools that track system parameters in real time. By combining this with PWM-controlled fans, the system can dynamically adjust fan speed based on temperature, pressure, or load conditions. This real-time adaptability ensures that energy is used only when needed, minimizing waste and reducing operating costs.
Applications of VFD-Controlled PWM Fans
Industrial Applications
Industries that rely on large-scale machinery, process cooling, or HVAC systems can benefit greatly from VFD-controlled PWM fans. Some applications include:
- Industrial HVAC Systems: Maintain consistent airflow and temperature in factories or warehouses.
- Machinery Cooling: Protect motors and equipment from overheating during operation.
- Process Control: Ensure precise environmental conditions for sensitive manufacturing processes.
Commercial and Residential Applications
Beyond industrial uses, VFD-controlled PWM fans are highly effective in commercial and residential environments:
- Server Rooms: Provide efficient cooling to prevent downtime and protect sensitive electronics.
- Air Conditioning Units: Ensure quieter operation with variable speed fans, reducing electricity usage.
- Smart Buildings: Integrate with building automation systems for optimized climate control and energy efficiency.
By adopting VFD and PWM technology, businesses and homeowners alike can improve system performance while saving energy.
Key Benefits of Combining VFDs and PWM Fans
- Energy Efficiency and Cost Savings: Fans operate only as fast as necessary, reducing electricity bills.
- Reduced Maintenance: Smooth motor operation decreases wear, minimizing maintenance needs.
- Extended Equipment Life: Controlled acceleration and deceleration protect mechanical components.
- Real-Time Adaptability: Systems can respond instantly to changing conditions, ensuring optimal performance.
The combination of VFDs and PWM fans not only improves operational efficiency but also supports sustainability initiatives by reducing energy consumption and emissions.
Tips for Implementing VFDs with PWM Fans
- Proper Sizing and Selection: Ensure compatibility between VFDs, PWM fans, and the system’s requirements. Oversized or undersized components can lead to inefficiency.
- Correct Installation and Wiring: Follow manufacturer guidelines for wiring, grounding, and mounting to prevent operational issues.
- Monitoring Tools for Performance Optimization: Use sensors and software to track fan performance, temperature, and energy usage, allowing for fine-tuning and real-time adjustments.
Proper implementation is critical to fully leverage the benefits of VFD-controlled PWM fans.
Conclusion
Integrating fan VFDs with PWM fans is a powerful strategy for real-time performance optimization in industrial, commercial, and residential applications. By providing precise motor and airflow control, these technologies reduce energy consumption, extend equipment life, and improve overall system reliability. Whether in large industrial plants, server rooms, or smart buildings, VFD-controlled PWM fans are an essential solution for efficient and intelligent cooling.
FAQ’s VFDs and PWM Fans Can Optimize Performance
Q1: How does a VFD improve efficiency?
A VFD improves efficiency by adjusting motor speed to match the load, reducing energy waste and lowering electricity consumption.
Q2: How does PWM work in VFD?
PWM in a VFD rapidly switches voltage on and off to control the motor’s power, allowing precise speed and torque control.
Q3: What are the benefits of using a VFD for pump and fan control?
VFDs save energy, reduce wear on motors, provide smooth acceleration, and allow precise flow and pressure control.
Q4: How does a VFD change speed?
A VFD changes motor speed by varying the frequency and voltage supplied to the motor.
Q5: Do VFDs reduce motor noise?
Yes, by operating motors at lower speeds when full power isn’t needed, VFDs reduce noise and vibration.
