sD12032 Series DC Axial Fan

120x120x32MM (4.72"x4.72"x.1.25")


MATERIAL:Frame: Plastic (UL94V-0)
Impeller: Plastic (UL94V-0)
Lead Wire: UL1007AWG#24 or Equivalent (+) Red, (-) Black
EXPECTED LIFE:Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
TEMPERATURE RANGE:Operating temperature -10°C~70°C (Non-condensing)
Storage temperature -40°C~70°C (Non-condensing)
SAFETY STANDARDS:UL, TUV, RoHS, CE
DC FAN SPECIALS:RD, FG, PWM, IP56

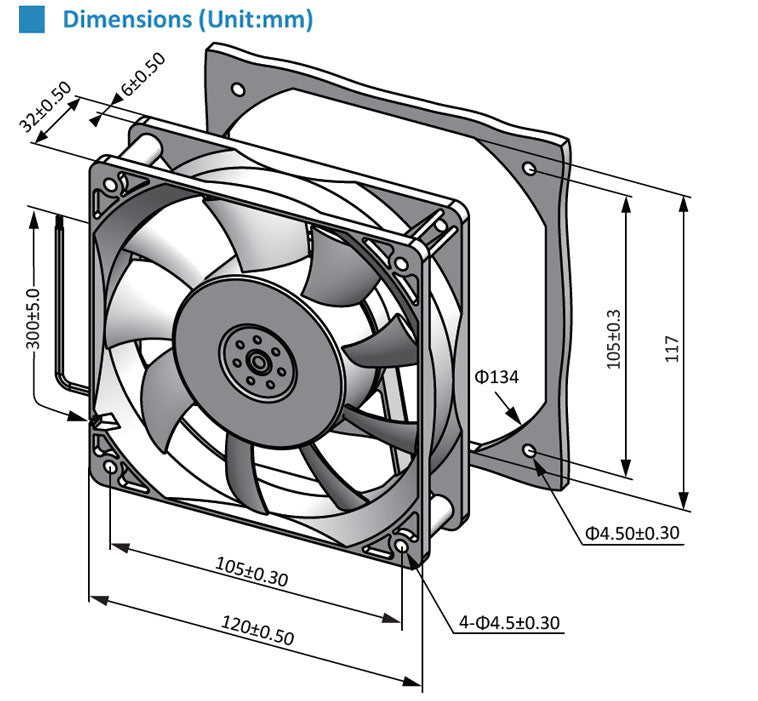

sD12032 Series DC Axial Fan Dimensions
sD12032 Series DC Axial Fan PQ Curve

Specifications

Model No.Rated VDC
Voltage
Operating
Voltage VDC
Input CurrentInput PowerSpeed (RPM)Max. Air Flow CFMMax. Air Flow m3/minMax. Static Pressure inchH2OMax. Static Pressure
(Pa)
Noise Level (dB-A)

Weight
(gram)

sD12032V12U127.0~13.82.0024.003500158.224.480.51127.3950.0237.0
sD12032V12H127.0~13.81.00

12.00

3000134.903.820.3895.1246.0237.0
sD12032V12M127.0~13.80.809.602500110.903.140.2664.9240.0237.0
sD12032V12L127.0~13.80.506.00200091.152.580.1845.6033.0237.0
sD12032V24U2414.0~27.61.0024.003500158.224.480.51127.3950.0237.0
sD12032V24H2414.0~27.60.7016.803000134.903.820.3895.1246.0237.0
sD12032V24M2414.0~27.60.5012.002500110.903.140.2664.9240.0237.0
sD12032V24L2414.0~27.60.307.20200091.152.580.1845.6033.0237.0
sD12032V48U4828.0~56.00.6028.803500158.224.480.51127.3950.0237.0
sD12032V48H4828.0~56.00.4521.603000134.903.820.3895.1246.0237.0
sD12032V48M4828.0~56.00.2512.002500110.903.140.2664.9240.0237.0
sD12032V48L4828.0~56.00.157.20200091.152.580.1845.6033.0237.0
