Description
sA17251 Series AC Cooling Fan

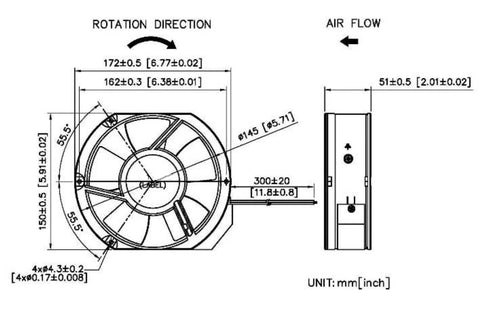

172X172X51MM
| MOTOR: | Capacitor motor, impedance protected |
| HOUSING: | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| IMPELLER: | Glass reinforced thermoplastic, UL 94V-0 |
| BEARING | Two-ball |
| TERMINATION: | T-Terminal type or W-Lead wire type |
| OPERATING TEMPERATURE: | Ball type -20℃~+80℃ |
| OPERATION VOLTAGE RANGE: | 103 VAC to 126 VAC for 115V Type 207 VAS to 253 VAC for 230V Type |
| DIELECTRIC STRENGTH: | 1 min. at 1,500VAC, 50/60Hz |
| INSULATION RESISTANCE: | 10M Ω min. @500 VDC |
| LIFE EXPECTANCY: | Ball bearing 60,000 hours at 60℃; |
| WEIGHT: | 900 gm |
| Model No. | Rated VAC | Freq. (Hz) | Speed (RPM) | Rated Current (A) | Input Power (W) | Max. Air Flow m3/min | Max. Air Flow CFM | Max. Static Pressure mm/H2O | Max. Static Pressure inch-H2O | Noise Level (dB) | RFQ |
| sA17251V1M | 115 | 50/60 | 2750/3200 | 0.23/0.22 | 26/25 | 6.08/7.07 | 215/250 | 14.5/18.5 | 0.57/0.72 | 52/57 | RFQ |
| sA17251V2M | 230 | 50/60 | 2750/3200 | 0.12/0.11 | 26/25 | 6.08/7.07 | 215/250 | 14.5/18.5 | 0.57/0.72 | 52/57 | RFQ |
