sDBS7758V24H-TK Series DC Blower

800-356-4159

sDBS7758V24H-TK Series DC Blower

77 X 67 X 58MM


MATERIAL:Frame: Plastic (UL94V-0)
Impeller: Plastic (UL94V-0)
Lead Wire: UL1007AWG#20 340mm
Lead Wire: UL1007AWG#24 340mm
EXPECTED LIFE:Ball Bearing 50,000hrs (40°C)
TEMPERATURE RANGE:Operating temperature -10°C~60°C (Non-condensing)
SAFETY STANDARDS:RoHS, CE
DC FAN SPECIALS:RD, FG, PWM, IPXX (available with special IP rating)
sDB12725 Series DC Blower Dimensions

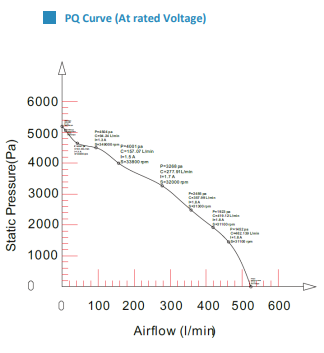

sDB12725 Series DC Blower PQ Curve

Specifications

Model No.Rated VDC
Voltage
Operating
Voltage VDC
Input CurrentInput PowerSpeed (RPM)Max. Air Flow CFMMax. Air Flow m3/minMax. Static Pressure inchH2OMax. Static Pressure
(Pa)
Noise Level (dB-A)Weight
(gram)
RFQ
sDBS7758V24H-TK2418.0 ~ 28.51.8043.203110018.710.53020.45519.5070.00266.00RFQ
