AC Blowers

sAB22056-F Series AC Blower

220x220x56MM (8.7"x8.7"x2.20")


MOTOR TYPE:Shaded Pole Motor
HOUSING:Plastic(PC+20% glass fiber)+Metal Piece
IMPELLER:Plastic PA. Covering Glass Fiber
BEARINGBall or Sleeve
TERMINATION:Lead Wire
OPERATING TEMPERATURE:-10°C to + 70°C
OPERATION VOLTAGE RANGE:103 VAC to 106 VAC for 115V Type
207 VAC to 253 VAC for 230V Type
DIELETRIC STRENGTH:5mA Max. at 1500 VAC for 1 second
INSULATION RESISTANCE:10M Ω min. @500 VDC
INSULATION:Class B
SAFETY:Thermally Protected
RoHS COMPLIANT:Yes
IP LEVEL:IP21 (Special IP Rating On Request)
WEIGHT:1.73kg

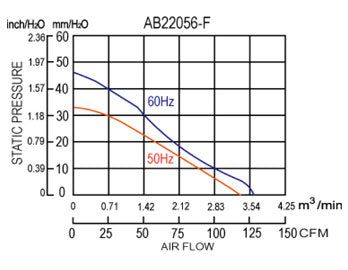

Specifications

Model No.Rated VACFreq. (Hz)Speed (RPM)Rated CurrentInput PowerMax. Air Flow m3/minMax. Air Flow CFMMax. Static Pressure mm/H2OMax. Static Pressure inchNoise Level (dB)Buy Now
sAB22056V1HB-F11550/602700/29000.7/0.650/523.3/3.6118/12633/461.3/1.863/65BUY
sAB22056V2HB-F23050/602700/29000.4/0.350/533.3/3.6118/12633/461.3/1.863/65BUY
