sA8025 Series AC Axial Fans

sA8025 Series AC Cooling Fan

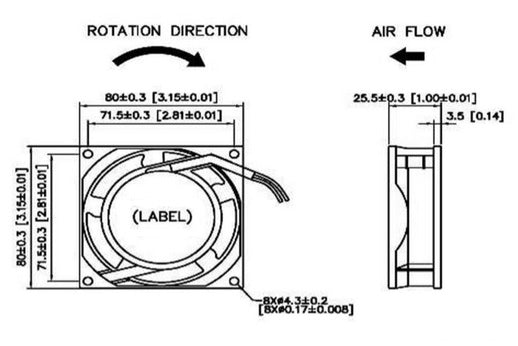

80X80X25MM (3.15"X3.15"X1")


MOTOR:Shaded pole, impedance protected
HOUSING:Die-cast aluminum, Painted black
IMPELLER:Glass reinforced thermoplastic, UL 94V-0
BEARINGTwo-ball or sleeve available
TERMINATION:T-Terminal type or W-Lead wire type
OPERATING TEMPERATURE:Ball type -20℃~+70℃;Sleeve type -10℃~+55℃
OPERATION VOLTAGE RANGE:103 VAC to 126 VAC for 115V Type
207 VAS to 253 VAC for 230V Type
DIELETRIC STRENGTH:1 min. at 1,500VAC, 50/60Hz
INSULATION RESISTANCE:10M Ω min. @500 VDC
LIFE EXPECTANCY:Ball bearing 60,000 hours at 60℃;
Sleeve bearing 20,000 hours at 45℃
WEIGHT:260gm(0.57 pound)

Specifications

Model No.Rated VACFreq. (Hz)Speed (RPM)Rated CurrentInput PowerMax. Air Flow m3/minMax. Air Flow CFMMax. Static Pressure mm/H2OMax. Static Pressure inchNoise Level (dB)
sA8025V1H11550/602550/32000.17/0.1515/130.42/0.5415/193.5/5.50.14/0.2227/34
sA8025V1M11550/602100/25500.09/0.0810/90.34/0.4212/152.1/2.80.08/0.1127/29
sA8025V1L11550/601750/18500.07/0.067/60.28/0.3410/121.5/1.60.06/0.0625/30
sA8025V2H23050/602550/32000.08/0.0715/130.42/0.5415/193.5/5.50.14/0.2227/35
sA8025V2M23050/602400/29500.06/0.0510/90.40/0.5114/182.9/4.30.11/0.1723/24

Choose Your Fan Below

sA8025V1H
$15.00
sA8025V1M
$15.00
sA8025V2H
$15.00
sA8025V2M
$15.00
sA8025V2L
$15.00
