sA15055M Series AC Cooling Fan

150X150X55MM (5.9"X5.9"X2.17")


MOTOR:Capacitor motor, Thermally protected
HOUSING:Die-cast aluminum, Painted black (AP)
IMPELLER:METAL
BEARINGBall Type or Sleeve Type
TERMINATION:T-Terminal type or W-Lead wire type
OPERATING TEMPERATURE:-10℃~+70℃
DIELETRIC STRENGTH:5mA Max. at 1500 VAC for 1 second
SAFETY:Impedance Protected
INSULATION RESISTANCE:100 MΩ min.@500VDC
TYPE of PROTECTION:IP21 (special IP rating on request)
RoHSYes
WEIGHT:940g (Super High) / 840g (High)

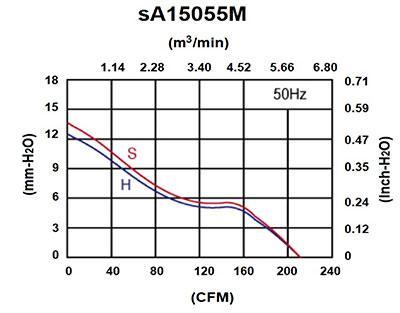

Specifications

Model No.Rated VACFreq. (Hz)Speed (RPM)Rated CurrentInput PowerMax. Air Flow m3/minMax. Air Flow CFMMax. Static Pressure mm/H2OMax. Static Pressure inchNoise Level (dB)
sA15055V1SHM11550/602800/33000.27/0.2326/265.94/6.79210/24013.5/17.50.53/0.6955/61
sA15055V1HM11550/602700/31000.25/0.2127/255.94/6.79210/24012.5/13.50.49/0.5353/59
sA15055V2SHM23050/602800/33000.10/0.1123/265.94/6.79210/24013.5/17.50.53/0.6955/61
sA15055V2HM23050/602700/31000.11/0.1226/275.94/6.79210/24012.5/13.50.49/0.5353/59
